Hydraulic Take-up Systems for Belt Conveyors

Six series of belt tensioning equipment — PLC constant-tension, hydraulic-mechanical, winch-type for cold regions, tension winches, combined tensioner-winders and VFD smart tensioning. Designed, manufactured and tested by a 20-year factory.

Home/Products/Hydraulic Take-up System

Why Tensioning Matters

Correct Tension = Belt Life, Safety and Availability

A take-up system keeps the belt under the right tension across all operating conditions — preventing slip, stretch, mistracking and structural damage. Choosing the right one is an engineering decision. Here is the range we manufacture.

PLC Constant-Tension

ZYJ Series

160–700 kN, PLC-controlled constant-tension for long-distance conveyors. Water-glycol flame-retardant hydraulic medium.

Compact Hybrid

ZY / DYL Series

50–400 kN hydraulic-mechanical tensioner — compact footprint for space-constrained installations.

Extreme Cold

ZJ Series

Patented electric-winch tensioner for extreme cold regions — 50–200+ kN, up to 35 m stroke, no hydraulic fluid to freeze.

Dual-Purpose

JZB Series

Hydraulic tension winch for belt tensioning and general winching duties — 40–79 kN, 380/660/1140 V.

Two-in-One

HYZJ Series

Integrated tensioner-winder combining tensioning and belt recovery in one unit — 320–600 kN.

Smart / VFD

ZPJ Series

VFD smart tensioning for intelligent mines — 50–120 kN rated tension, gas-mine rated, remote monitoring.

Series 01

ZYJ Series — PLC-Controlled Hydraulic Automatic Tensioner

The workhorse of long-distance belt conveyors. A PLC-controlled hydraulic system maintains constant belt tension automatically as the belt stretches, with stroke capacity up to 20 m for large installations.

Models	ZYJ-160/15D ~ ZYJ-700/15D
Max Tension Force	160 / 200 / 250 / 300 / 400 / 500 / 600 / 700 kN
Max Stroke	0 – 20 m
System Pressure	16 MPa
Power / Voltage	15 kW / 380 · 660 · 1140 V
Hydraulic Medium	Water-glycol or emulsion (flame-retardant)

Request ZYJ Solution

ZYJ Series Hydraulic Automatic Tensioner

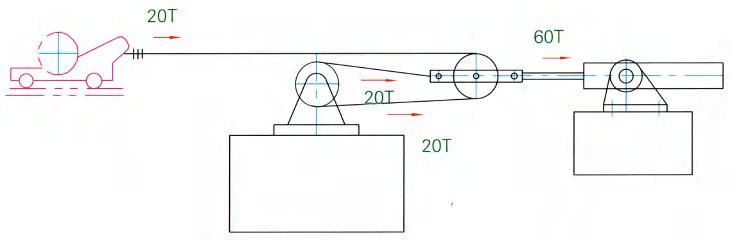

ZY DYL Series Hydraulic Mechanical Tensioner

Series 02

ZY / DYL Series — Compact Hydraulic-Mechanical Tensioner

A cost-effective hydraulic-mechanical hybrid for medium conveyors where space is limited. Compact design with reliable tensioning performance for general industrial and mining installations.

Models	DYL-01/ZY-100 ~ DYL-07/ZY-400
Max Tension Force	50 – 400 kN
Stroke	1.5 – 12 m
Power	4 – 30 kW
System Pressure	16 MPa

Request ZY/DYL Solution

Series 03

ZJ Series — Winch-Type Automatic Tensioner for Extreme Cold

Patented electric-winch tensioner designed for extreme cold regions where hydraulic fluid would freeze. Long stroke up to 35 m makes it ideal for surface conveyors in cold-climate mines and ports.

Tension Ratings	50–100 kN (5.5 kW) · 150–200 kN (7.5 kW) · 200+ kN (18.5 kW)
Stroke	0 – 35 m
Wire Rope	Φ16 – Φ30 mm
Sample Model	ZJ-100/7.5D

Request ZJ Solution

ZJ Series Winch-Type Automatic Tensioner

Series 04

JZB Series — Hydraulic Tension Winch

A dual-purpose hydraulic winch for belt tensioning and general winching use — a flexible tool for conveyor maintenance teams and engineering contractors.

Models	JZB-3Y / JZB-5.6Y / JZB-9Y
Max Tension Force	40 / 56 / 79 kN
Power Pack Displacement	53 / 91 / 126 L/min
Voltage	380 / 660 / 1140 V
Drum / Rope	Φ280 mm / 6×36WS Φ16–22 mm

Request JZB Solution

Series 05

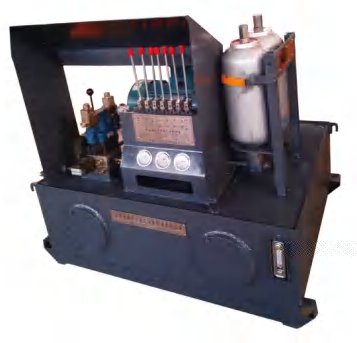

HYZJ Series — Integrated Tensioner-Winder

Combines belt tensioning and belt recovery (winding) in one unit — saving footprint and installation cost on conveyors that need both functions.

Models	HYZJ-320/800/26D · HYZJ-400/1000/26D · HYZJ-500/1200/26D · HYZJ-600/1400/26D
Tension Force / Belt Width	320–600 kN / 800–1400 mm
Power	15 – 30 kW
Clamping Force	65,000 N
Max Coil Diameter / Weight	1,500–1,800 mm / 3,500–4,200 kg

Request HYZJ Solution

Series 06

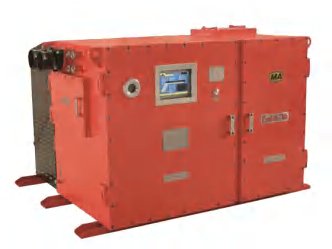

ZPJ Series — VFD Smart Tensioner for Intelligent Mines

Variable-frequency-drive tensioning with closed-loop control, built for intelligent mine systems. Gas-mine rated, remote monitoring via centralized control, adaptive tension response.

Models	ZPJ-200/30 · ZPJ-300/30 · ZPJ-400/30 · ZPJ-540/55 · ZPJ-720/75
Rated Tension	50 / 80 / 90 / 90 / 120 kN
Power	30 / 30 / 30 / 55 / 75 kW
Stroke	0 – 35 m
Ambient	-20°C – +40°C, humidity ≤95%, gas-mine rated

Request ZPJ Solution

How We Help You Choose

Not Sure Which Series Fits Your Conveyor?

Tell us the belt width, conveyor length, tension requirement and operating environment. Our engineers will recommend a series and a configuration within 24 hours.
