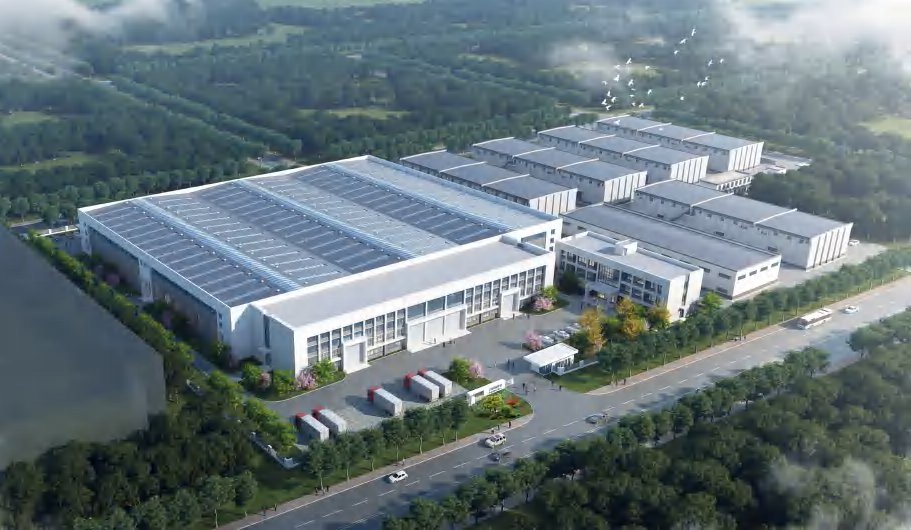

Company Profile
About Jiangsu Gaosheng Huayu
Founded in 2006 in Xuzhou, Jiangsu Province, China, with registered capital of RMB 97 million, Jiangsu Gaosheng Huayu Electric Equipment Manufacturing Co., Ltd. is a specialized manufacturer of belt conveyor core supporting equipment, including hydraulic belt winders, hydraulic tensioners, variable-frequency tensioners, disc brake systems, transfer units, self-advancing tail sections, backstops and mine flameproof control boxes.

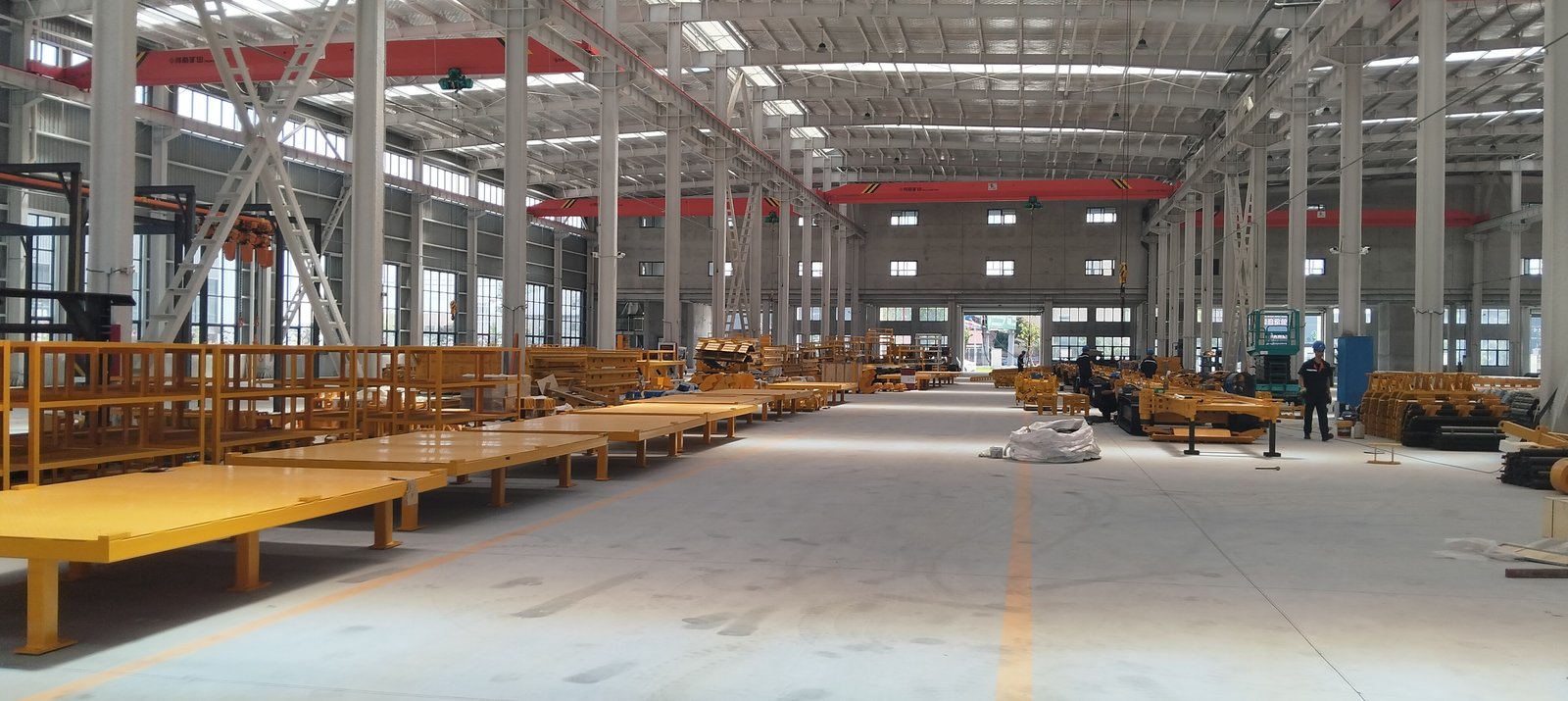

The company employs 200+ staff, including professors, associate professors, senior engineers and mid-level technical personnel. It operates 60,000+ m² of modern production facilities with an annual output capacity exceeding RMB 300 million, holding 69 patents. All products carry MA Coal Mine Safety Certification and ISO 9001 quality management certification.
Through deep cooperation with China University of Mining and Technology (CUMT), the company has completed over ten research projects, including the national key project for mine confined-water disaster prevention equipment — designed and manufactured entirely by our company, with a 500-ton hydraulic system (30-ton total weight), a domestic first. Our hydraulic products are also applied in national aerospace laboratories.
Product Range
Core supporting equipment for belt conveyor systems
PRODUCT CONTENTS

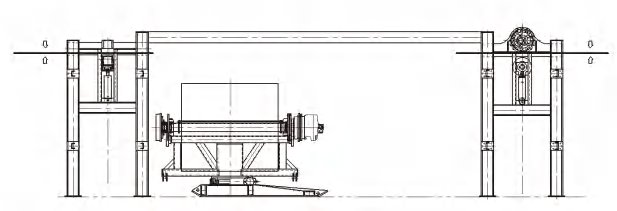

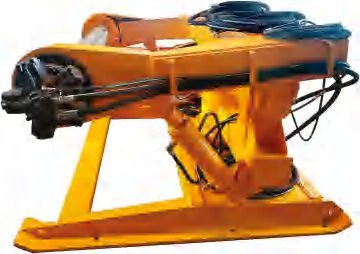

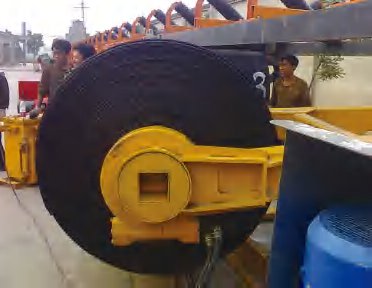

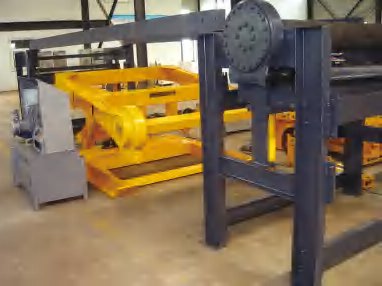

Hydraulic Belt Winder

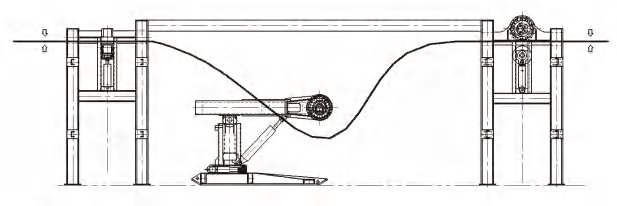

The JY Series hydraulic belt winder uses a hydraulic motor to clamp, pull and wind conveyor belts, fully mechanizing belt recovery. Traditional manual recovery — cutting, pulling out, folding and carrying the belt — is labor-intensive, slow and hazardous. The JY winder automatically completes clamping, pulling, cutting, winding into a coil and 360° rotating discharge. Designed for underground extendable belt conveyors, it is also used in ports, power plants, cement plants and steel mills.
Key Specifications
| Models | JY800/15 · JY1000/15 · JY1000/30(A) · JY1200/15 · JY1200/22 · JY1200/30(A) · JY1400/30 · JY1400/30(A) · JY1600/44 |
|---|---|
| Belt Width | 800 / 1000 / 1200 / 1400 / 1600 mm |
| Clamping Force | 65,000 N (68,000 N for 1400/1600 models) |
| Pulling / Winding Torque | 8,000 ~ 20,000 N·m (depending on model) |
| Winding Speed | 0 ~ 20 r/min (adjustable) |
| Max Coil Diameter | 1,500 ~ 1,900 mm |
| Max Coil Weight | 3,000 ~ 5,500 kg |
| Motor Power / Voltage | 15 ~ 44 kW / 660 · 1140 V |
| Standards | MT 820 · NB/T 11462-2023 |
Key Features

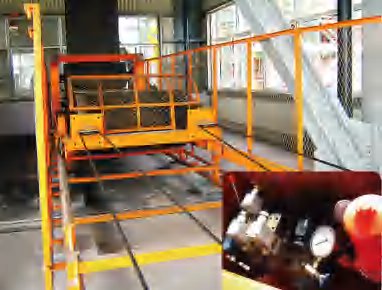

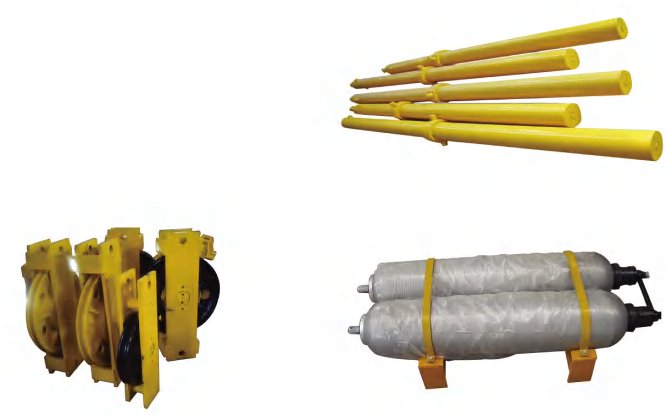

Hydraulic Automatic Tensioner
Long-distance belt conveyors require dynamically adjustable tension. The ZYJ series automatically provides startup tension, reduces tension at steady state, and maintains constant belt tension through a PLC control unit with real-time digital display. Designed for coal mine conditions where fire-resistant solid-woven belts have 10× higher elongation than standard belts, the ZYJ device is essential for belts over 500 m.
Key Specifications
| Models | ZYJ-160/15D ~ ZYJ-700/15D |
|---|---|
| Max Tension Force | 160 / 200 / 250 / 300 / 400 / 500 / 600 / 700 kN |
| Max Stroke | 0 ~ 20 m |
| System Pressure | 16 MPa |
| Power / Voltage | 15 kW / 380 · 660 · 1140 V |
| Hydraulic Medium | Water-glycol or emulsion (flame-retardant) |
Key Features

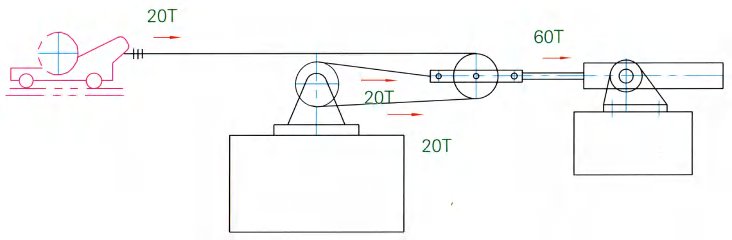

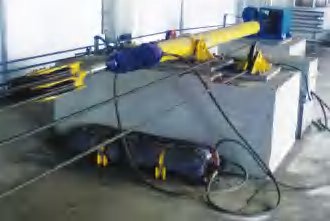

Hydraulic Automatic Tensioner
The ZY (DYL) series combines hydraulic actuation with mechanical locking for reliable, adjustable tension control of medium belt conveyors. It normally operates without a winch and with a smaller stroke, ideal for belts under 800 m and space-constrained installations.
Key Specifications
| Models | DYL-01/ZY-100 ~ DYL-07/ZY-400 |
|---|---|
| Max Tension Force | 50 ~ 400 kN |
| Stroke | 1.5 ~ 12 m |
| Power | 4 ~ 30 kW |
| System Pressure | 16 MPa |

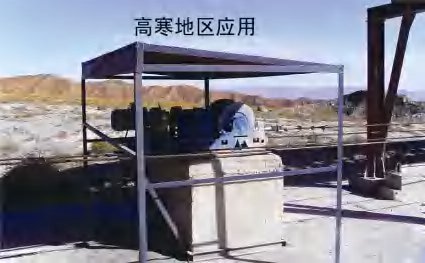

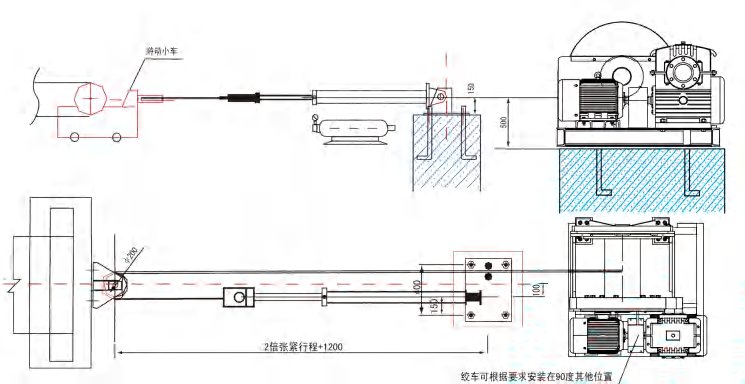

Winch-Type Automatic Tensioner
The ZJ series uses an electric tension winch with automatic control and tension-sensor feedback. It provides startup tension and maintains constant running tension, automatically adjusting when over-tension occurs due to loading or temperature. Patented, simple, economical, maintenance-free — specifically for high-latitude cold regions or explosive atmospheres where hydraulic tensioners are unsuitable.
Key Specifications
| Tension Ratings | 50~100 kN (5.5 kW) · 150~200 kN (7.5 kW) · 200+ kN (18.5 kW) |
|---|---|
| Stroke | 0 ~ 35 m |
| Wire Rope | Φ16 ~ Φ30 mm |
| Sample Model | ZJ-100/7.5D |
Hydraulic Tension Winch
The JZB hydraulic tension winch and its power pack are used for belt tensioning in underground coal mines and surface conveyors, and may serve as a general-purpose winch with a dedicated application plan. Twin hydraulic motors drive straight gearing for smooth operation; overload relief protects the motor; flame-retardant design rated for methane and coal-dust environments.
Key Specifications
| Models | JZB-3Y / JZB-5.6Y / JZB-9Y |
|---|---|
| Max Tension Force | 40 / 56 / 79 kN |
| Power Pack Displacement | 53 / 91 / 126 L/min |
| Voltage | 380 / 660 / 1140 V |
| Drum / Rope | Φ280 mm / 6×36WS Φ16~22 mm |

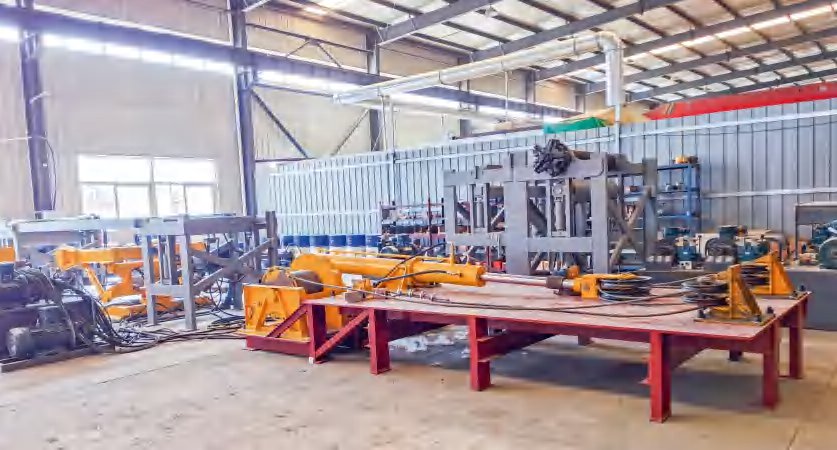

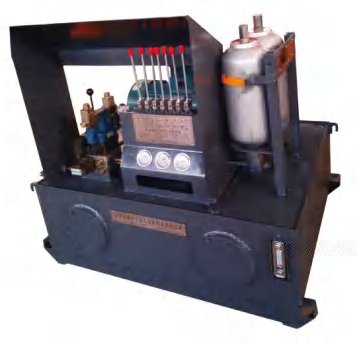

Integrated Tensioner-Winder
The HYZJ integrated device combines belt tensioning and belt winding in a single compact unit with one electric control system and one integrated pump station. It reduces equipment footprint, simplifies hydraulics and provides coordinated control — ideal for space-constrained underground applications, with automatic break-signal protection and centralized control capability.
Key Specifications
| Models | HYZJ-320/800/26D · HYZJ-400/1000/26D · HYZJ-500/1200/26D · HYZJ-600/1400/26D |
|---|---|
| Tension Force / Belt Width | 320~600 kN / 800~1400 mm |
| Power | 15 ~ 30 kW |
| Clamping Force | 65,000 N |
| Max Coil Diameter / Weight | 1,500~1,800 mm / 3,500~4,200 kg |

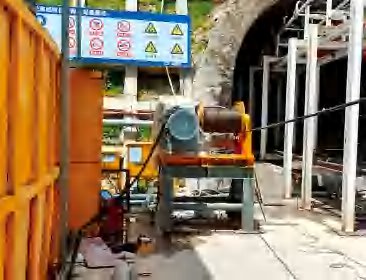

Variable-Frequency (VFD) Tensioner
The ZPJ series uses a VFD-driven winch with vector control. Startup and running tension can be freely set (startup tension up to 1.4~1.5× running tension). Running parameters are transmitted to the mine control center in real time for centralized control — an equipment-level platform for smart mining. Energy-efficient, soft start/stop, low maintenance, quick installation.
Key Specifications
| Models | ZPJ-200/30 · ZPJ-300/30 · ZPJ-400/30 · ZPJ-540/55 · ZPJ-720/75 |
|---|---|
| Rated Tension | 50 / 80 / 90 / 90 / 120 kN |
| Power | 30 / 30 / 30 / 55 / 75 kW |
| Stroke | 0 ~ 35 m |
| Ambient | -20°C ~ +40°C, humidity ≤95%, gas-mine rated |

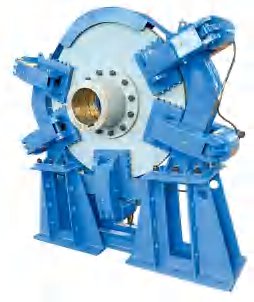

Disc Brake System
Developed from mathematical model analysis combined with international advanced technology, the KPZ disc brake provides reliable braking for upward, downward and horizontal conveyors. Under PLC control it performs over-speed braking and stop braking on downhill conveyors, with secondary and constant-torque braking options. Spring-applied, hydraulically released fail-safe design; large brake discs provide excellent heat dissipation.
Key Specifications
| Models | KPZ-850 / KPZ-1000 / KPZ-1200 / KPZ-1400 / KPZ-1600 / KPZ-1800 |
|---|---|
| Brake Disc Diameter | Φ850 ~ Φ1800 mm |
| Braking Torque | 2×28 ~ 2×75 kN·m (per model) |
| Hydraulic Power Pack | 4 kW motor · 380/660/1140 V |
| Hydraulic Medium | Water-glycol flame-retardant fluid (YNC46) |
| Control | PLC control · remote monitoring via centralized system |
Contact-Type Wedge Backstop
Backstops prevent reverse runaway of loaded inclined belt conveyors when the drive stops suddenly. The NJZ/NJ wedge-type backstop mounts directly on the reducer output shaft or drive pulley shaft. Precision heat-treated alloy-steel wedges provide accurate engagement, high load capacity and easy release — with the drive system remaining fully unloaded during the locked state, allowing safe maintenance.
Key Specifications
| NJZ Series | NJZ16 ~ NJZ2200 — rated torque 16,000 ~ 2,200,000 N·m |
|---|---|
| NJ Series | NJ11 ~ NJ700 — rated torque 11,000 ~ 700,000 N·m |
| Max Inner Ring Speed | 50 ~ 150 r/min (by model) |
| Standard | MT/T 1065-2008 · MA Coal Mine Safety Certified |
| Operating Temp. | -20°C ~ +60°C |
Key Features

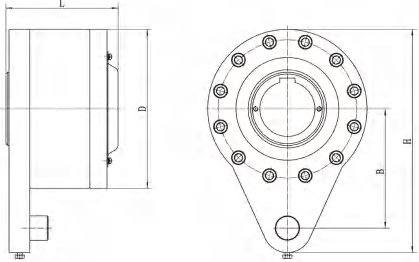

Non-Contact Backstop
NF non-contact backstops use special wedge geometry and centrifugal force so that rotating and stationary elements have no physical contact during forward operation — zero wear, zero drag and long service life — while still engaging reliably in reverse. CKF-A is designed for high-speed anti-reverse duty and can also serve as a dual-drive overrunning clutch. Available in N and S rotation directions.
Key Specifications
| NF Series | NF10 ~ NF250 — rated torque 1,000 ~ 250,000 N·m |
|---|---|
| NF Max Speed | 1,000 ~ 1,500 r/min (by model) |

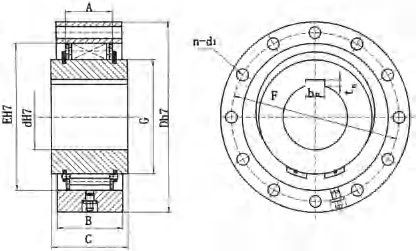

| CKF-A Series | CKF-A2090 ~ CKF-A150400 — overrunning speed up to 6,000 r/min |
| Operating Temp. | -20°C ~ +60°C |

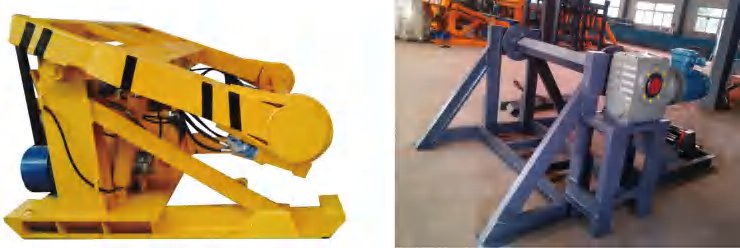

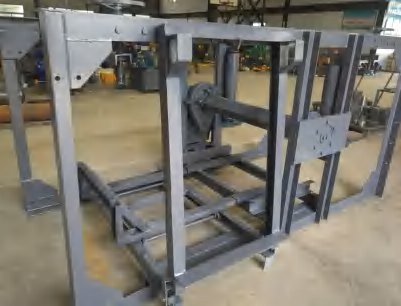

Electric Belt Winder
The JD electric belt winder uses an explosion-proof motor and hardened-gear reducer for mechanized belt recovery. Simple structure, easy operation, compact footprint for underground space, low failure rate, and serviceable without stopping the conveyor. Ideal for extendable belt conveyors and as a standalone unit for scrap belt recovery or belt installation. For belts wider than 1400 mm, hydraulic drive is recommended.
Key Specifications
| Models | JD800 ~ JD2000 (by belt width) |
|---|---|
| Belt Width | 800 ~ 2,000 mm |
| Motor Power | 7.5 ~ 45 kW |
| Voltage | 380 / 660 / 1140 V AC |
Belt Correction (Anti-Misalignment) Devices
Belt misalignment directly affects conveyor operation and belt life. Gaosheng Huayu offers four complementary correction technologies for all conveyor types in mining, power, metallurgy and chemical industries.

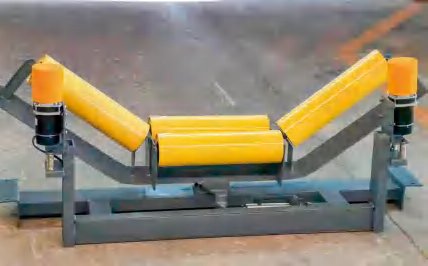

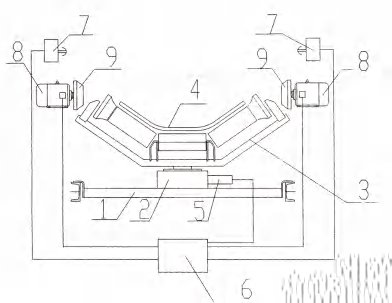

WD Passive Electric Corrector
No external power required — belt contact drives low-speed DC generators that rotate the correction idler, returning the belt to center. Fast response, unaffected by temperature, low cost, patented.
ZJPS Four-Bar Linkage Corrector
Four-bar linkage design ideal for mine flame-resistant solid-woven belts and belts over 500 m. Precision, long service life, site-adjustable detector wheels, maintenance-free, no power/water/oil required.
| Belt Width | 800 / 1000 / 1400 / 1600 mm |
|---|---|
| Belt Speed | < 6 m/s |
| Max Misalignment | ±50 mm |

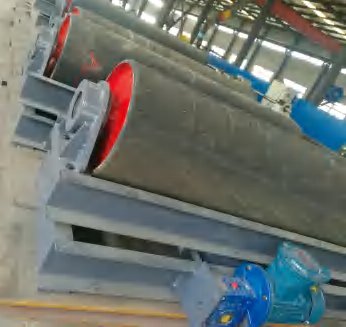

JPT Automatic Correction Roller Unit
PLC-based intelligent real-time correction; correction force many times greater than conventional units thanks to special mounting and roller technology. Suitable for high/low temperature, humid and dusty environments; can replace additional bend pulleys to save cost.
| Belt Width / Speed | 500 ~ 2,400 mm / 0.5 ~ 5.0 m/s |
|---|---|
| Ambient Temp. | -28°C ~ +52°C |

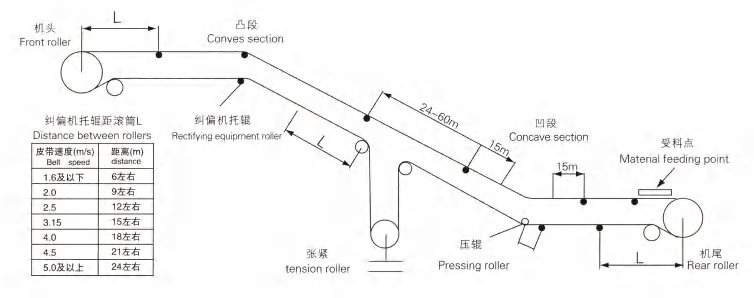

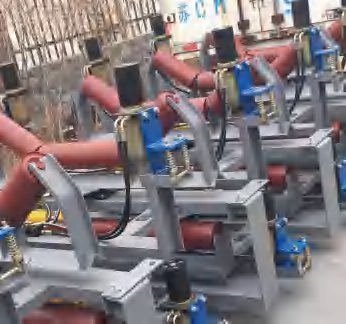

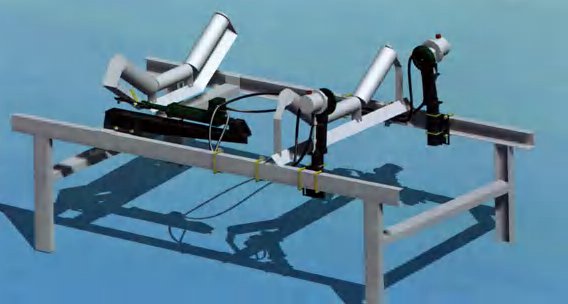

WY Passive Hydraulic Corrector
Belt contact drives a low-speed pump whose oil actuates a cylinder to tilt the self-aligning idler, generating corrective force — then stops automatically after realignment. One WY unit equals 5+ mechanical correction rollers; best solution for reversible belts.
| Standard Range | Belt width ≤2,400 mm, speed 0.8~4.5 m/s (custom beyond) |
|---|

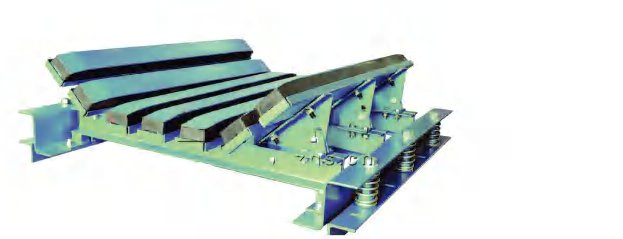

Impact Bed
The impact bed is installed under the transfer point to support and protect the belt, effectively absorbing the impact of falling material and preventing belt damage and misalignment. Slide bars combine flame-retardant, anti-static UHMWPE nano-material with buffer rubber on a metal frame; a patented dual-stage shock-absorbing system handles large lump coal or rock.
Key Specifications
| Models | HYX-HCS650×1000 ~ HYX-HCS2000×1500 |
|---|---|
| Belt Width | 650 ~ 2,000 mm |
| Slide Bar Length | 1,000 / 1,200 / 1,500 mm |
| Material | UHMWPE nano slide bars · flame-retardant · anti-static |
Belt Replacing Devices

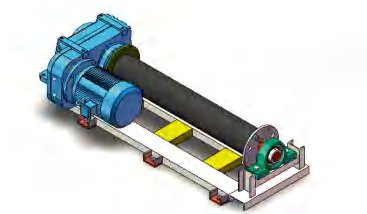

WZD Belt Replacing Device
Integrated electro-mechanical design with drive, reduction and safety lock inside one compact unit. Local control or 50 m remote control; overload auto-stop and self-locking reduction protect operators.
| Models | WZD40 / WZD75 |
|---|---|
| Motor / Torque | 4 / 7.5 kW · 3,990 / 9,800 N·m |
| Lifting Capacity | 3,000 / 6,000 kg |
YHD Mobile Belt Replacing Device
Hydraulic-powered, smooth start, traction 60~100 kN at max 12 m/min. Overheat/overload protection, audible-visual warning, local or remote control. Solid-rubber wheels for field mobility — meets safety requirements of large, high-capacity conveyors worldwide.
| Traction / Speed | 60 ~ 100 kN / 12 m/min |
|---|---|
| Power / Rope Capacity | 15 kW / 200 m |
| System Pressure | 12 MPa |
Belt Break Capture Device
The DDZ belt break capture device is a purely mechanical, fail-safe protection device that instantly captures and holds a broken belt, preventing catastrophic runaway that could damage equipment and endanger personnel. Gravity-driven, lever-operated full-width top-and-bottom capture; no false triggering; capture shoes do not damage the belt; suitable for explosion-proof mine environments.
Key Specifications
| Models | DDZ-1500/100 ~ DDZ-1500/200 |
|---|---|
| Rated Capture Force | 1,500 kN |
| Belt Width | 1,000 ~ 2,000 mm |
| Belt Speed | 1.6 ~ 6 m/s |
| Max Incline | 28° |
| Suggested Spacing | one per 150~260 m depending on incline |
Conveyor Monitoring & Protection Products
Complete range of monitoring and safety protection products, compatible with our tensioners for integrated belt-break, slip and deviation protection.
| ROS-2D Belt Deviation Switch | misalignment detection |
|---|---|
| SPS-2D Pull Cord Switch | emergency stop |
| 60-23P Speed Switch | belt break / slip / over-speed protection |
| ZL-K/DB-100 Rip Switch | belt tear / puncture protection |
| 60-22 Speed Monitor | speed detection and protection |
| Tilt Switch | material flow and level detection |
Other Supporting Equipment
Beyond the core products above, Gaosheng Huayu supplies a comprehensive range of belt conveyor supporting equipment for coal mines, power plants, ports and mines:
